Application :
Designed for the packaging kinds of wafers, such as vanilla wafers, chocolate wafers, hazelnut wafers, almond wafers, coffee wafers, and more.
Kindly Reminder :
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers :
1. High-Speed Packing: Packs 500-600 wafers per minute, boosting production efficiency.
2. Seamless Integration: The feeding conveyor belt integrates smoothly with your production line.
3. Food-Grade Belt: Ensures hygiene with easy-to-clean materials.
4. Automatic Feeding: Stretch conveyor automatically feeds wafers into the multi-channel system.

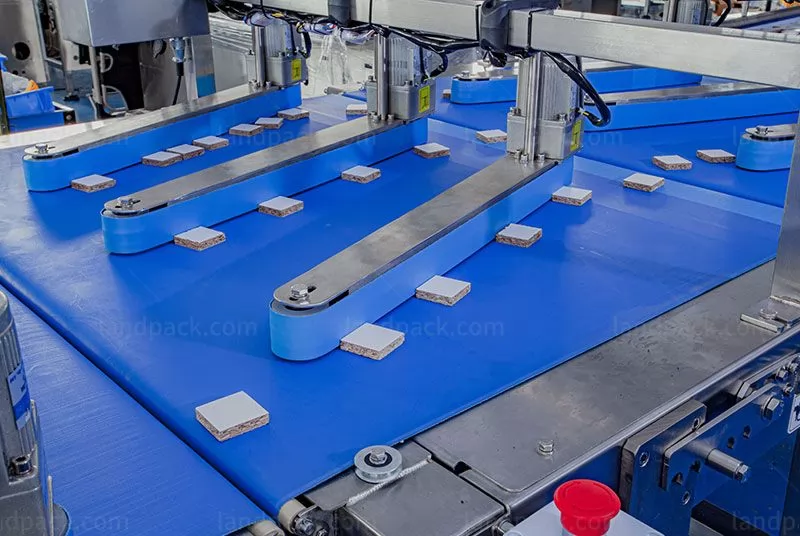

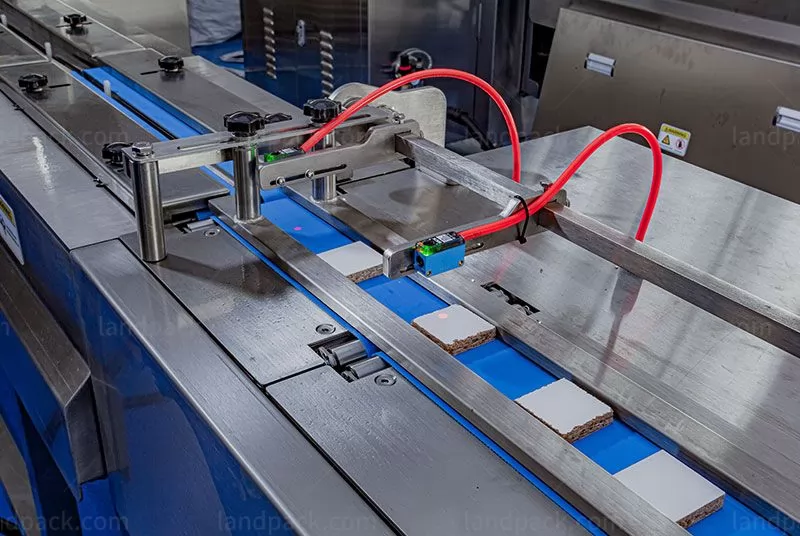

5. Precision Sorting: Equipped with 6 sorting belts and high-precision SICK sensors for accurate sorting.
6. High-Speed Ink Coding: Delivers efficient and precise product coding.
7. Automatic Film Reel Change: Minimizes downtime for continuous operation.
8. Three Servo Drive Packing: Offers high-speed and reliable packaging.

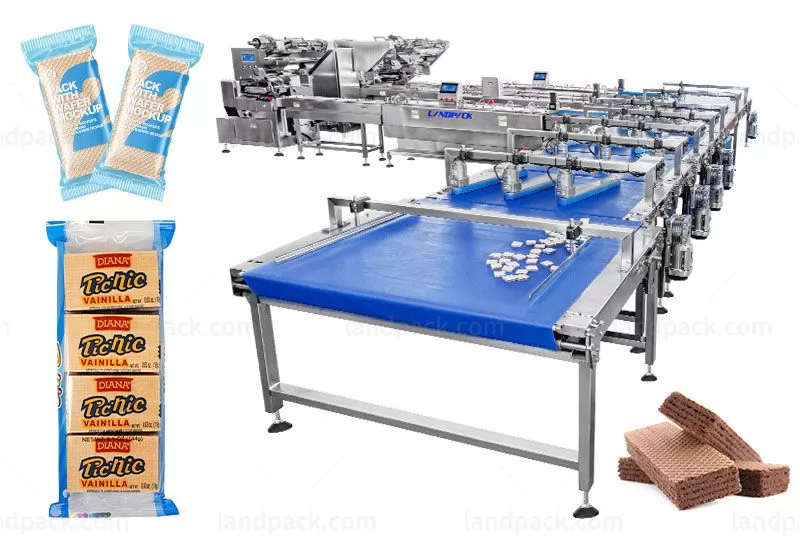

Workflow:

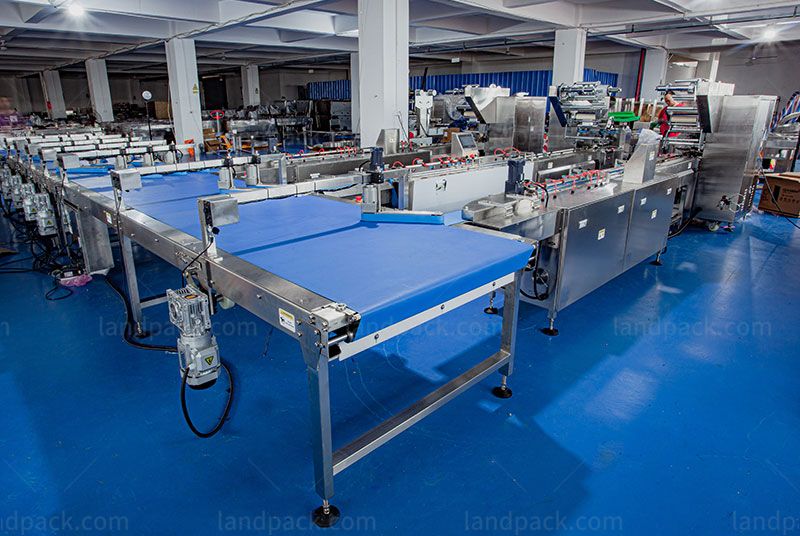

1. Feeding conveyor belt docks with your production line
2. The stretch conveyor feeds the wafers into the multi-channel automatically
3. Three servo drive high speed flow packing machine
| Model | LP-350B |
| Film width | Max.350mm |
| Bag size | 60-190mm(L)*50-160mm(W) |
| Product height | Max 75mm |
| Packing speed | 200-300 bags/min (Depends on material length) |
| Machine size | 7980*3180*1540mm |
| Power voltage | single-phase, AC 220V/60Hz, 5.5kw |
| Material of fame | Machine frame SS201.Contact part: SS304 |
| Packing line | 1+2 / 1+3 |
| Drive | Three servo motor |
| Packaging material | BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET, etc. |
| Application | wafers, biscuits, cookies, bread, cake, bun, chocolate bar, frozen foods, dumplings, frozen meat, etc |
After receiving your inquiry,We will send you the quotation as soon as possible.
