Application:

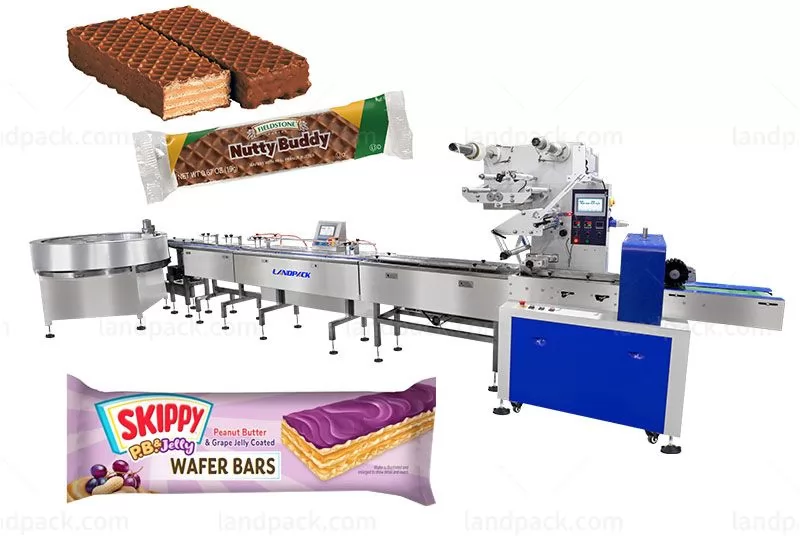

It is ideal for high-speed pillow packing of various block materials, including square, spherical, and uniquely shaped items. Suitable for products like wafer, candy, jerky, cookies, buns, chocolate, biscuits, and protein bars..
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
Dual Frequency Conversion Control: Allows the bag length to be set and cut in one step, saving both time and film.
High-Sensitivity Photoelectric Eye: Provides color tracking and numerical input for precise cut-seal positioning.
Temperature Independent PID Control: Adaptable for packing various materials with precise temperature management.
Positioned Stop Function: Prevents knife and film waste by stopping in exact positions.
Simple Driving System: Ensures reliable operation and easy maintenance.
Software-Based Control: Facilitates easy adjustments and technical updates through software.
| Model | LP-350 | LP-400 | LP-450 | LP-600 |
| film width | max.350mm | max.400mm | max.450mm | max.600mm |
| bag length | 65-330mm | 150-400mm | 150-450mm | 160-500mm |
| bag width | 50-160mm | 50-180mm | 50-180mm | 100-280mm |
| high end products | max.60mm | max.65mm | max.75mm | max.110mm |
| film roll diameter | max.320mm | max.320mm | max.320mm | max.320mm |
| packing speed | 40-180bag/min | 30-150bag/min | 30-150bag/min | 20-150bag/min |
| Force | 220V 50/60Hz, 2.6KW | 220V 50/60Hz, 2.8KW | 220V 50/60Hz,2.8KW | 220V 50/60Hz, 2.8KW |
| Machine size (length x width x height) | 4030*770*1420 | 4030*770*1420 | 4030*820*1420 | 4030*970*1500 |
| Machine weight | about 580kg | about 600kg | about 650kg | about 680kg |
| optional devices | 1. Side feeding device, 2. Straight feeding device, 3. Material conveyor belt,4. Final sealing auxiliary conveyor, 5. Auxiliary material feeding device, 6. Material cutting prevention device, 7. Perforation device, 8. Angle folding device, 9. Date printer, 10. Labeler | |||
After receiving your inquiry,We will send you the quotation as soon as possible.
