Application:
It is suitable for conventional granular zipper bags, standing bags, pre-made bags packing such as nuts, dry food, spices, biscuits, beans, oats, candy, coffee beans, chocolate, pet food, potato chips, popcorn, dried fruits, etc.
Sutable Pouch: Any premade pouch such as Stand-up bag, Stand-up bagwith zip, Back-sealed bag, Gusset bag, 3-sides-sealed bag, 4-sides-sealed bag, 8-sides-sealed bag Self-sealed bag etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

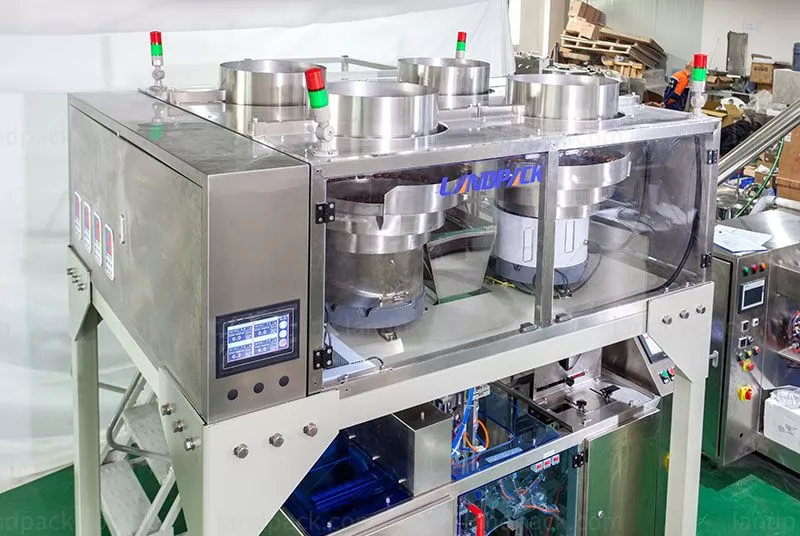

1. Vibration bowl weighing machine with economical price.
2. Mix four types of nuts.
3. With ink jet printer, printing information can be set on touched screen, more intelligent.

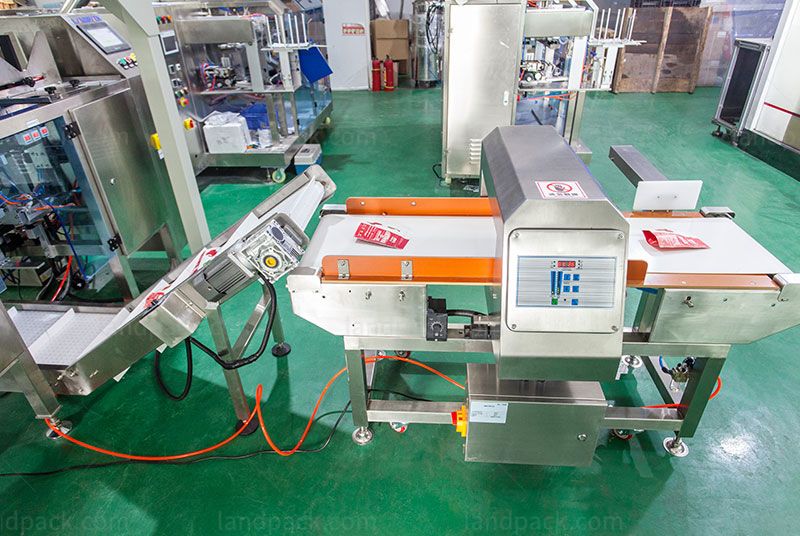

4. With metal detector, efficiently select the qualified products.
Work Flow:
1. Vibration bowl weigher seperately measure different product weights.
2. Ink jet printer prints the information.

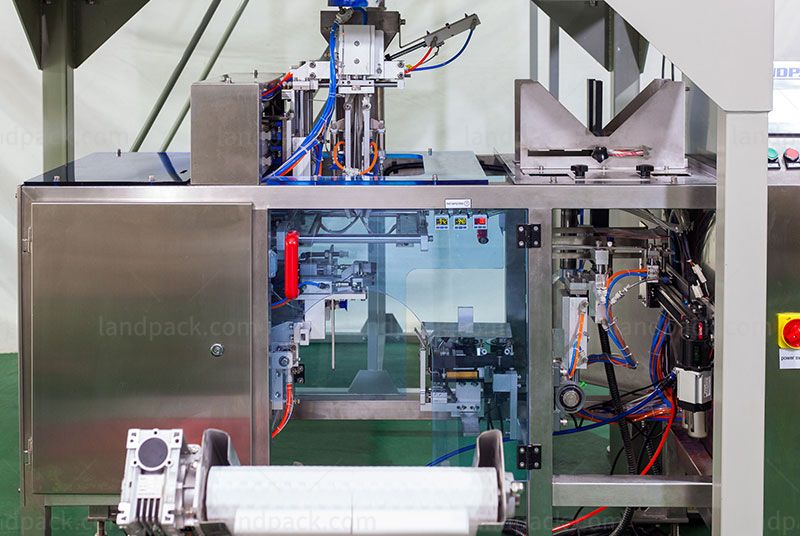

3. Automatically bag feeding.

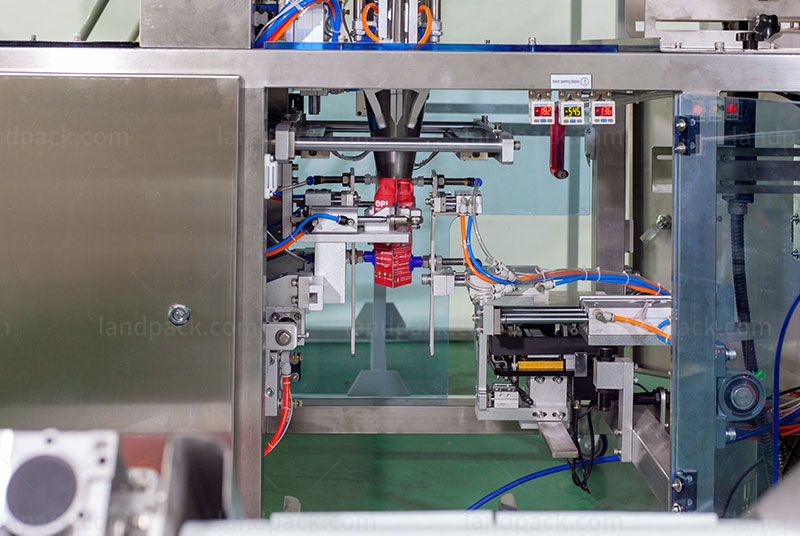

4. Automatically zipper&bag opening.
5. Automatically filling.
6. Sealing.
7. Output.
8. Finished product conveyor delivers the finished bag to outside.
9. Metal detector.

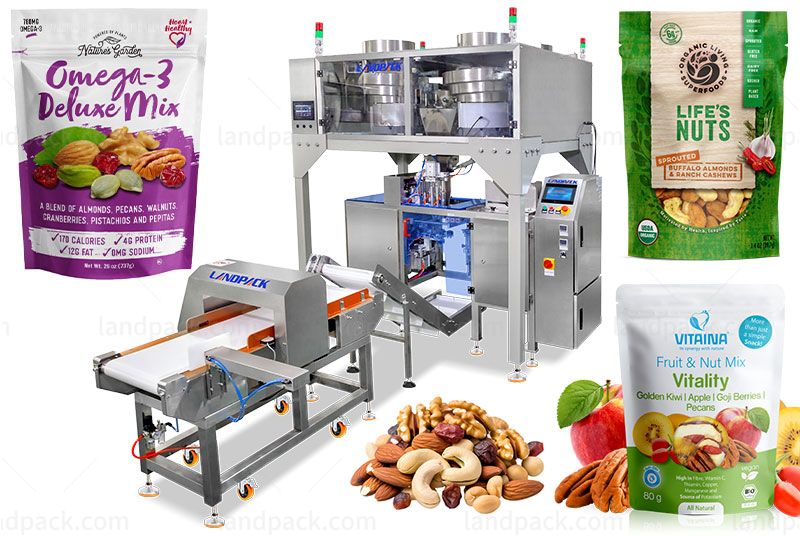

| Type | Automatic Granual Mixing Zipper Pouch Mini Doypack Filling Sealing Packaging Machine With Metal Detector | ||
| GP-160 | LG1-260 | LG1-430 | |
| Bag Material | Multi-layer Composite Premade Bag（e.g.: PET/PE） | ||
| Premade bag type | 3-sides sealing bag, stand-up bag） | ||
| Upgraded Bag Type | （Need additional purchase of functional device） | Gusset Bag, Zipper Bag, box bag (Need additional purchase of functional device | |
| Bag size | 70mm≤W≤150mm | 80mm≤W≤300mm | 80mm≤W≤300mm |
| 70mm≤L≤160mm | 100mm≤L≤260mm | 100mm≤L≤430mm | |
| Speed | 0~60bags/min | 0~15bags/min | |
| Sealing Type | Straight grain, pitch is 1mm (Optional reticulate) | ||
| Sealing Width | 10mm（5--20mm) can be customized | ||
| Voltage | 220V, Single-phase,50/60HZ, 1.2KW | ||
| Air Pressure | 0.65Mpa | ||
| Air Consumption | Standard machine, no additional function | ||
| Body Dimension | 1770*600*1230mm | 1770*600*1360mm | |
| Packing Dimension | 1860*710*1550mm | 1860*710*1650mm | |
| Export non-fumigation wooden case | |||
Basic Configurations:
Touch Screen | China Kinco 7 inches corlor touch screen |
Languages | Chinese, English, Spanish, Dutch, Italian, Korean (At most three languages); |
PLC | Japan Panasonic |
Cylinder | Taiwai Airtac (Can be upgraded to Japan SMC) |
Vacuum Generator | China Airbest (Can be upgraded to Vacuum Pump); |
Vacuum Component | Japan SMC; |
Modular Control System For Vacuum Pressure | Japan SMC; |
Modular Control System For Temperature: | China YUDIAN; |
Electrical Component | Schneider / Omron; |
The main structure of the machine is SUS304 (The thickness of the rack is 3.0mm), and the material of the part is aluminum; | |
The part (Hopper) in contact with the material is SUS304 (Can be upgraded to SUS316L). | |
After receiving your inquiry,We will send you the quotation as soon as possible.
