Application:
Suitable for packing powder in zipper pouch such as milk powder, spice powder, seasoning powder, protein powder, coffee powder, grains powder, nutritional powder, etc.
Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Filling range
3. Zipper pouch dimension
4. Zipper pouch material
Packaging Exambers:
1. This machine is designed to accommodate various bag sizes, ensuring adaptability to different packaging requirements.
2. Combining mixing and stirring functions with the packaging process streamlines production. It's an efficient solution for products that require thorough blending.
3. The machine maintains stability even at high speeds, crucial for efficient production lines and consistent output.
4. Whether it's standing bags, four-sided sealing bags, or zippered bags, this machine can handle them effectively. Its versatility caters to diverse packaging needs.
Workflow:

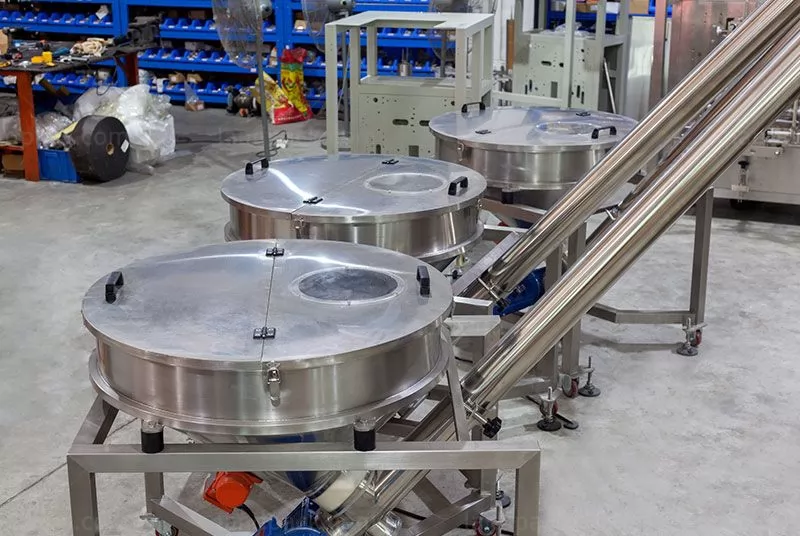

1. Screw Feeder
2. Screw Mixer
3. Secondary Screw Feeder
4. Horizontal Bag Giving Station
5. Date Printer → Zipper Opener
6. Bag opener → Filling
7. Dust Removing
8. Sealing
9. Forming
10. Finish products
Model | LD-8200/LD-8250 |
Packing material | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc |
Size | W: 70-200/100-250mm |
Filling range | 10-1000g/20-2500g |
Packing speed | 40-60 bags/min（speed is determined by the product filling quantity） |
Average precision | ≤ ±1% |
Total Power | 2.5 KW |
Dimensions | 1900mm*1570mm*1700mm（L*W*H） |
Workflow | giving bag→coding→opening→filling 1→filling 2→auxiliary→exhaust→heat sealing→forming and output product |
| Main standard parts | 1. Code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5. Cylinder 6. Electromagnetic valve 7. Temperature controller 8. Vacuum pump 9. Inverter 10. Output system |
After receiving your inquiry,We will send you the quotation as soon as possible.
