Application:
It is designed for all kinds of food packaging into zipper pouch, such as coffee, frozen food, biscuits, cereals, nuts, potato chips, jerky, vegetable, fruit, powdered materials, candy, etc.
Suitable Pouch: Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

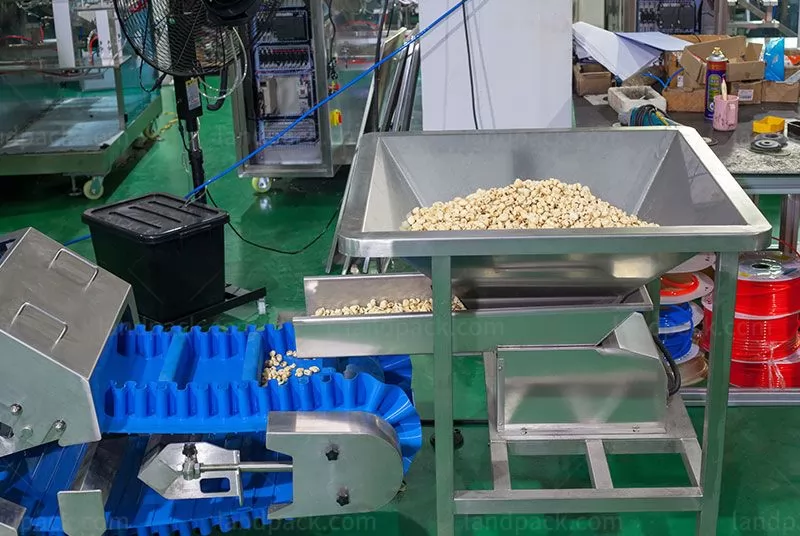

Washable conveyor, no bacteria，more sanitary.

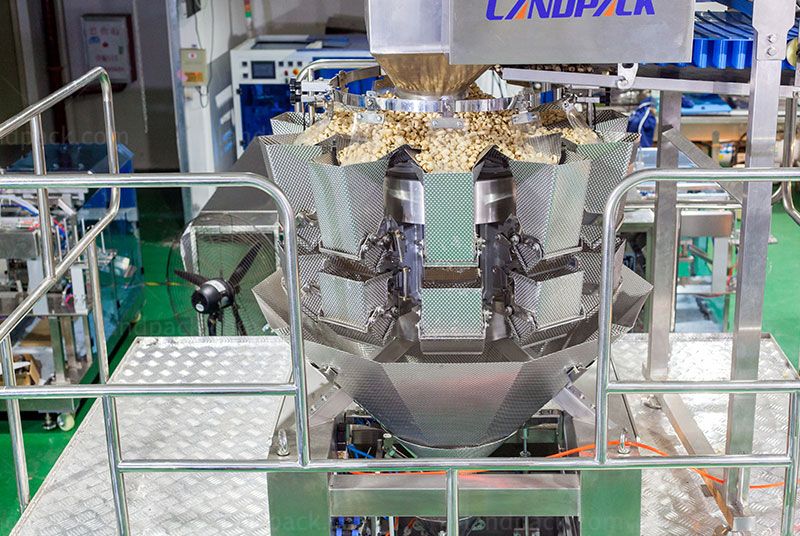

Multi-head weigher with dimple surface, suitable for sticky product.
Integrated metal&weight detection machine, save space.
Package film: Lamination pouch, Pe, aluminium pouch, paper pouch, bag type can be stand bag, zipper bag, flat bag(3 side seal, 4 side seal, bag with punched hole handle, pillow bag etc.).
Packaging machine are used in almost every industry today, food or non-food, they are efficient packaging solutions.
Key Technology:

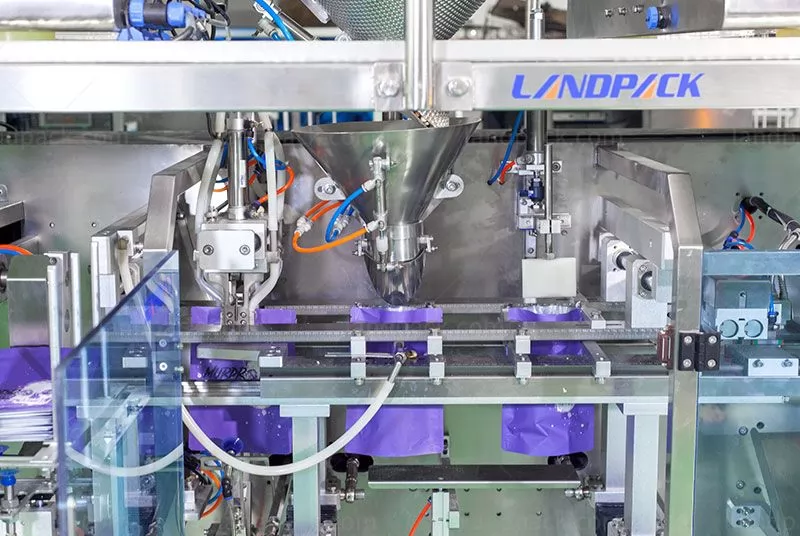

4 station running for high speed packing.
Servo motor driven for reliable performance.
Auto adjust bag width size for easy operation.
Auto operation control.
7" User's friendly H.M.I. ensure high efficiency performance.
Auto pouch detecting sensor, no pouch no dump ensure material splash down.
Automatic breakdown detection and solution is displayed on the screen clearly.
Various option functions are available as per request.
| Type | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
| Bag Type | 3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc. | |||
| Bag Size | 110-230mm*80-160mm(L*W) | 70-100mm*110-230(L*W) | 100-210mm/110-320mm（L*W） | 100-260mm/110-320mm（L*W） |
| Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
| Packing Speed | 20-45bags/min(speed is determined by the product filling quantity) | 25-50bags/min(speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) |
| Machine weight | 800KG | 800KG | 900KG | 1000KG |
| Total Power | 2.0KW | 2.0KW | 2.0KW | 2.0KW |
| Work Flow | 1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product | |||
| Dimensions | 1750mm X 1285mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | |
| Collocation | Screw metering,screw elevator | |||
After receiving your inquiry,We will send you the quotation as soon as possible.
