Application:
Suitable for weighing and packing grain, stick, slice, globose, and irregular shape products such as candy, chocolate, jelly, pasta, melon seeds, roasted seeds, peanuts, pistachios, almonds, cashews, nuts, coffee beans, chips, snacks, biscuits, raisins, plum, cereals and other leisure foods, pet food, puffed food, vegetable, dehydrated vegetables, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. This machine is designed to accommodate various bag sizes, ensuring adaptability to different packaging requirements.
2. The machine ensures precise measurement by automatically counting and weighing the contents.
3. To guarantee accuracy, the machine performs weight re-inspection. Additionally, it includes a metal detection system to ensure that the final product is free from impurities.

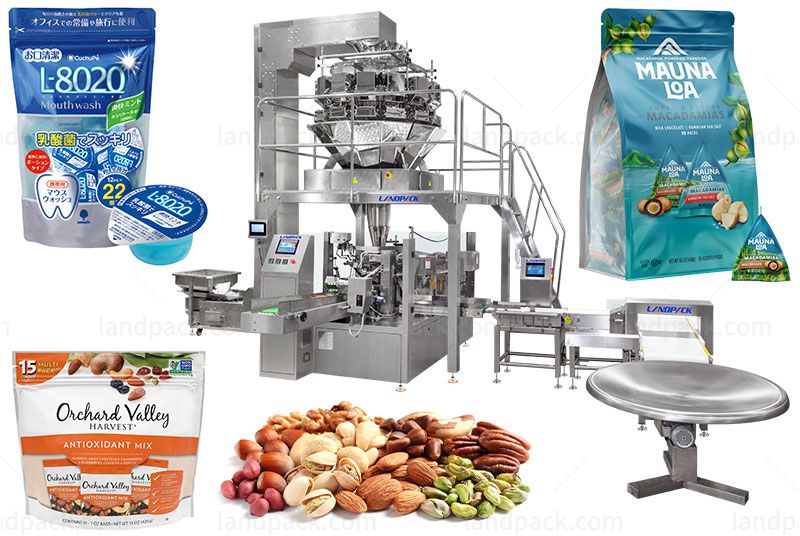

Workflow:
1. Conveyor auto feeding
2. Auto feeding bag

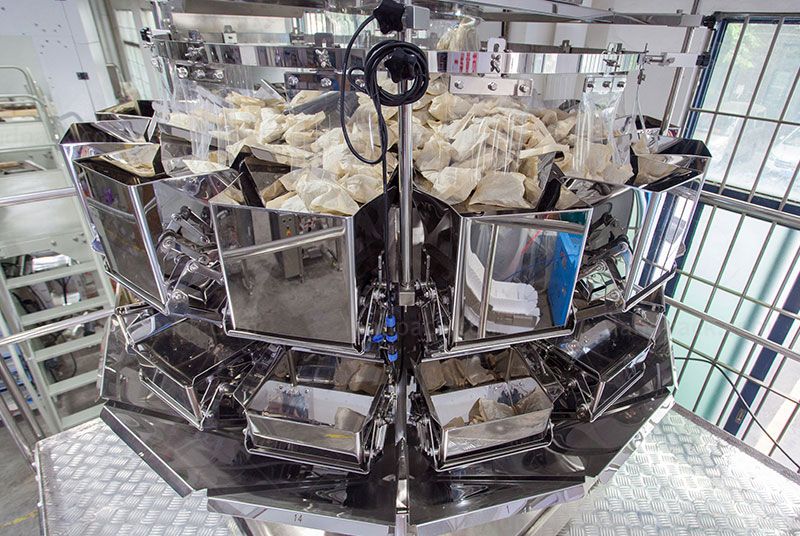

3. 14 heads 5L weigher accurate weighing
4. Auto printing date

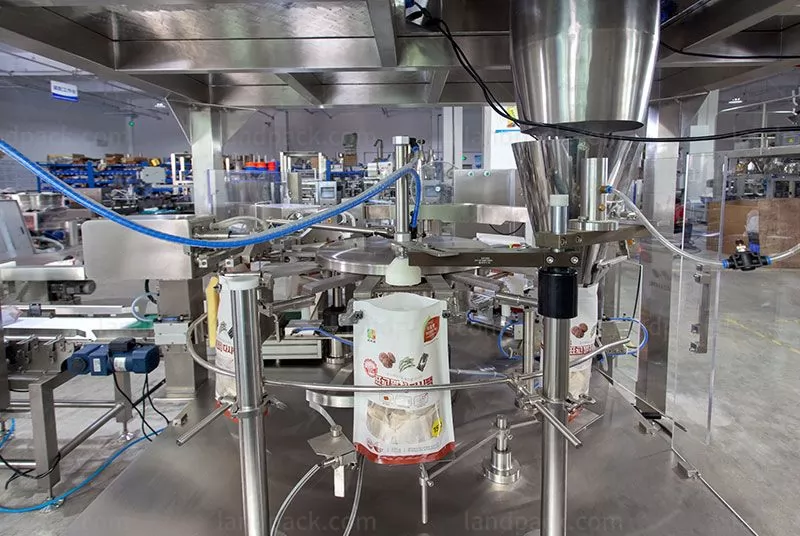

5. Opening bag
6. Auto filling product
7. Press product
8. Auto sealing bag
9. Finished product convey

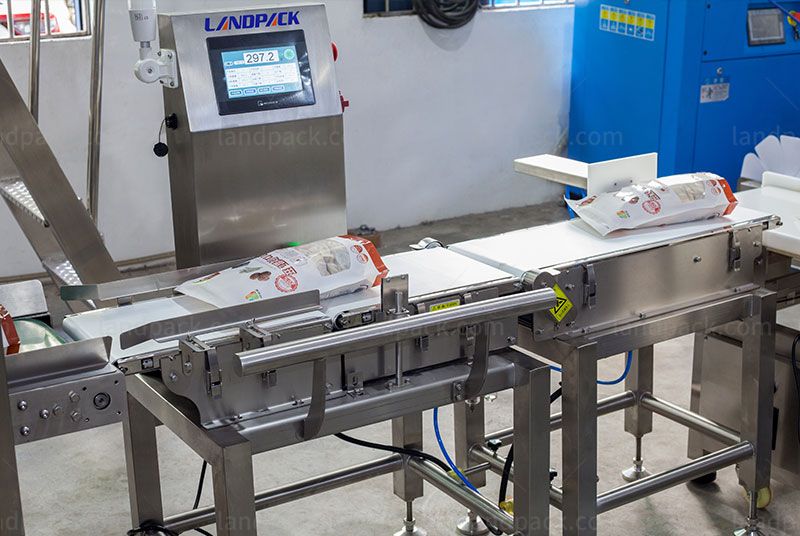

10. Weigher check
11. Reject metal
| Model | LD-8200/LD-8250 |
| Packing material | All types of heat sealable performed side seal bags, block bottom bags, zip-lock recloseable bags, stand-up pouches, paper bags, flat pouches, zipper pouches, spout pouches, m gusset pouches, paper pouches, aluminum foil pouches, etc. |
| Size | W: 70-200/100-250 |
| Filling range | 10-1000g/20-2500g |
| Packing speed | 40-60 bags/min (speed is determined by the product filling quantity) |
| Average precision | ≤ ±1% |
| Total power | 2.5KW |
| Dimensions | 1900*1570*1700mm (L*W*H) |
| Workflow | giving bag→coding→opening→filling 1→filling 2→auxiliary→exhaust→heat sealing→forming and output product |
| Main standard parts | 1. Code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5. Cylinder 6. Electromagnetic valve 7. Temperature controller 8. Vacuum pump 9. Inverter 10. Output system |
